35mm Ultra-Thin Soft Close Concealed Cabinet Hinge, 3D Adjustable Fixed Hinge with Small Angle Damping for 16-26mm Doors
$0.00
Upgrade your cabinetry with our 35mm ultra-thin soft close concealed hinge. Features 3-way adjustment, 5°–20° small angle damping, and sleek decorative covers for 16–26mm doors.
35mm Ultra-Thin Soft Close Concealed Cabinet Hinge, 3D Adjustable Fixed Hinge with Small Angle Damping (16-26mm Doors)
| Specification | Value / Description |
| Model | DY113 |
| Product Model | 35mm Ultra-Thin Soft Close Concealed Hinge |
| Installation | Fixed / Slide-on (Non-Detachable) |
| Cup Diameter | 35 mm |
| Door Thickness | 16 – 26 mm |
| Soft Close Mechanism | 3 way Hydraulic Damping |
| Damping Angle | Small Angle Buffer (Active at 5° – 20°) |
| Adjustment | 3D Cam Adjustment (Vertical, Horizontal, Depth) |
| Included Accessories | Arm Decorative Cap & Cup Cover |
| Material & Finish | High-Grade Cold-Rolled Steel, Nickel Plated |
Upgrade point
Ultra-Thin 35mm Concealed Hinge with Fixed Base
Engineered with a 35mm cup and ultra-thin profile for 16–26mm cabinet doors, featuring a solid fixed (non-detachable) structure for maximum stability and long-lasting durability.
【Precision 3D Calibration】Say goodbye to misalignment.
Our integrated 3-way adjustment system allows you to fine-tune your doors without removal:
Horizontal (±3mm): Perfect side-to-side centering.
Vertical (±2mm): Eliminates door sagging over time.
45° - 98° Free Hovering: The door stays exactly where you leave it for easy access.
5° - 45° Soft Closing: Smooth, automated deceleration.
0° - 5° Anti-Pinch Zone: A specialized "Small-angle" buffer protects fingers and reduces impact noise
3-Stage Soft Close with Small Angle Damping (5°–20°)
Built-in 3-stage hydraulic damper activates at a narrow 5°–20° angle, ensuring silent, anti-slam closure and smooth motion even on slight door pushes.

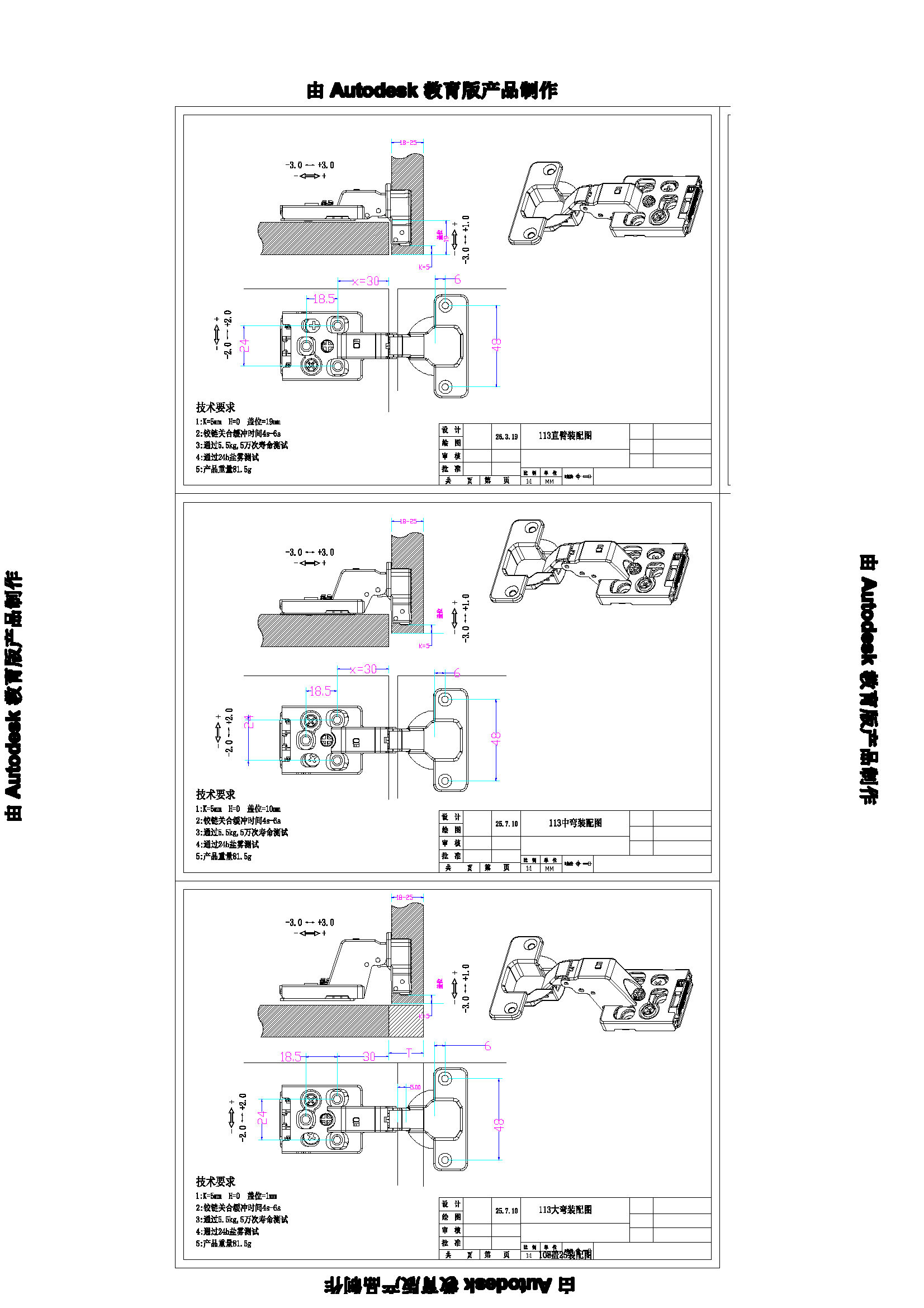

Drawing
