3D Adjustable Soft Close American Face Frame Hinge with Integrated Damper
$0.00
Upgrade your kitchen with our 3D adjustable American hinges featuring an integrated soft-close damper. Durable, silent, and tested for 50,000 cycles. Wholesale available.
Item:DYM-NK
Function:sotf close&3D adjustment
Opening:Inward Opening
Material:Cold rolled steel and finhised is nickle plated
3D Adjustable Soft Close American Face Frame Hinge with Integrated Damper
The FGVSLIDE 3D Adjustable American Face Frame Hinge is engineered for high-end cabinetry. By integrating advanced hydraulic damping technology directly inside the hinge cup, we provide a sleek, minimalist look without compromising on the ultimate silent-close experience. Whether you are a professional cabinet maker or a hardware wholesaler, this hinge adds a touch of "invisible luxury" to every project.
💎 Key Features & Benefits
1. Integrated Soft-Close Technology (Built-in Damper)
Unlike traditional clip-on buffers or external pistons, our hydraulic damper is seamlessly built into the hinge cup.
Aesthetic Appeal: A cleaner, streamlined interior view of the cabinet.
Enhanced Durability: The damper is protected by the hinge cup, preventing it from falling off or getting damaged during daily use.
Silent Performance: Ensures a smooth, slow, and silent closing motion every time—no more slamming doors.

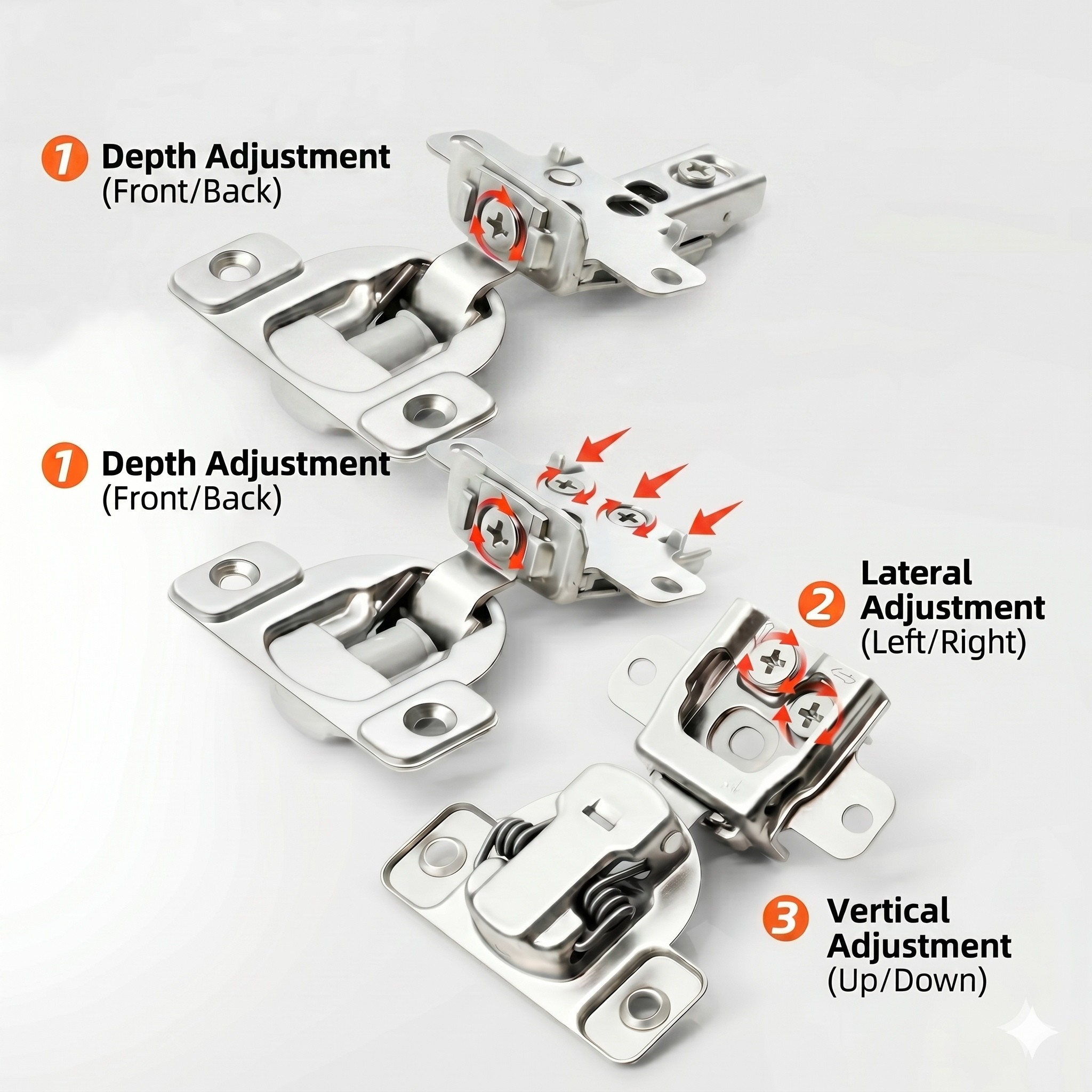

2. Precise 3-Way Adjustability
Post-installation alignment has never been easier. With just a screwdriver, you can achieve perfect door positioning:
Vertical Adjustment: Move the door up or down.
Horizontal Adjustment: Fine-tune the door overlay (left or right).
Depth Adjustment: Optimize the gap between the door and the cabinet frame.The Pro Advantage: Achieve a flawless, gap-less finish even if the initial installation wasn't perfectly aligned.
3. Industrial-Grade Durability & Certification
Cycle Tested: Rated for over 50,000 open/close cycles, ensuring more than 10 years of reliable service.
Salt Spray Tested: Finished with high-grade nickel plating that has passed rigorous salt spray testing for superior corrosion resistance.
Premium Material: Crafted from high-strength cold-rolled steel for maximum load-bearing capacity.

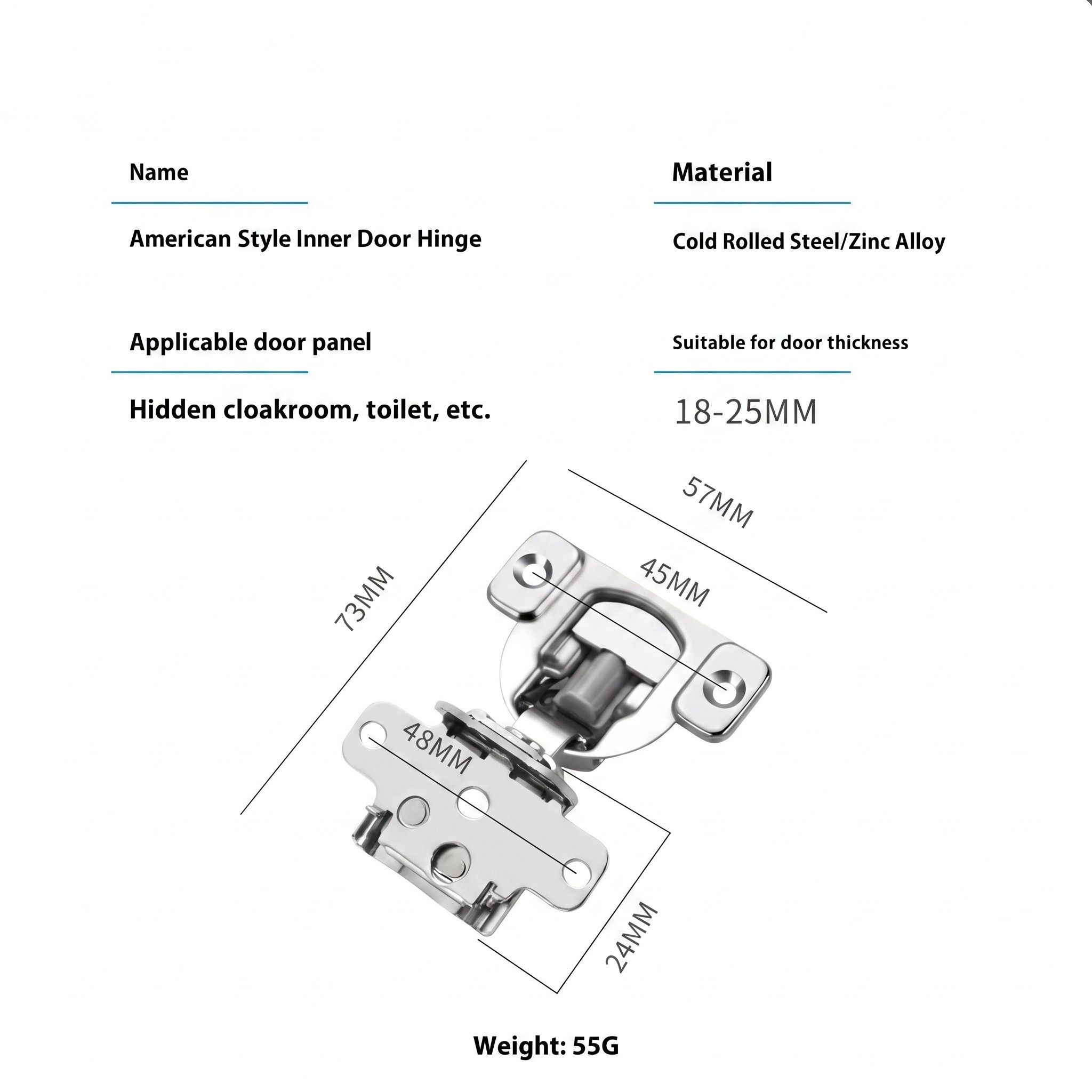

📏 Technical Specifications
| Feature | Details |
| Hinge Type | American Style Face Frame Hinge |
| Adjustment | 3-Way (Vertical / Horizontal / Depth) |
| Closing Type | Integrated Hydraulic Soft Close |
| Overlay Options | 1/2", 1-1/4" (Custom sizes available) |
| Opening Angle | 105 Degrees |
| Cycle Rating | 50,000+ Cycles |
| Finish | Premium Nickel Plated |
| Material | High-Grade Cold Rolled Steel |
🏠 Ideal Applications
Kitchen Cabinetry
Bathroom Vanities
Custom American-Style Furniture
Commercial Office Storage Solutions
🤝 Wholesale & OEM Services
With 25 years of manufacturing expertise, FGVSLIDE provides global partners with:
Custom Branding: Logo embossing on hinges or covers.
Flexible Packaging: Options for bulk industrial packing or retail-ready blister packs.
Global Logistics: Professional export handling with reliable shipping to North America, Europe, and beyond.
