Cabinet Door Linear Soft Closehinge
$0.00
Item:DYC9-2
Material:cold rolled steel
Finish: titanium electroplating
Overlay:Full overlay/half overlay/insert
CC Distance: 48mm
Cup Diameter: 35mm
Cup Depth: 13.5mm
Door thickness:16-28mm
- Product Details
- Technical Specification

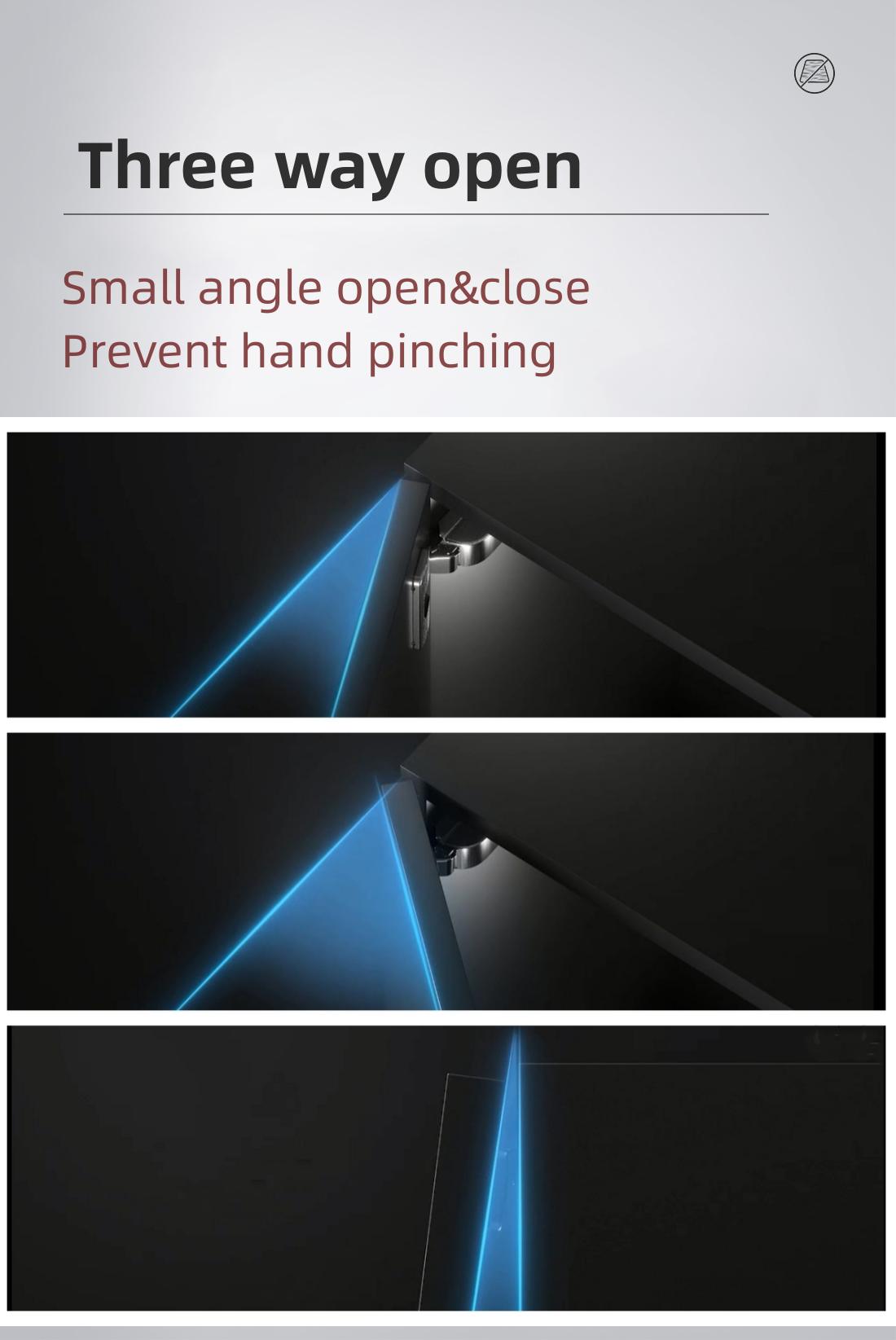

*Small angle opening and close
It has the currently popular three way hinge, and the 0-45 degree door opening and closing has a small angle buffer function, which is safer and prevents pinching, stops at will and is almost noiseless, opens and closes smoothly, and the extremely narrow door gap of 1.5mm does not damage the door panel, and makes the cabinet door look better after installation.
The overall process is based on the cold-rolled steel raw material. The copper bottom is plated, the titanium process, and the anti-oxidation treatment are treated, the hardness is higher, the corrosion resistance is beautiful and the gloss is maintained.
*Testing
100h salt spray test,and 24h acid test
* Good Load Capacity, Long Service Life
The opening and closing life is 50,000 times.

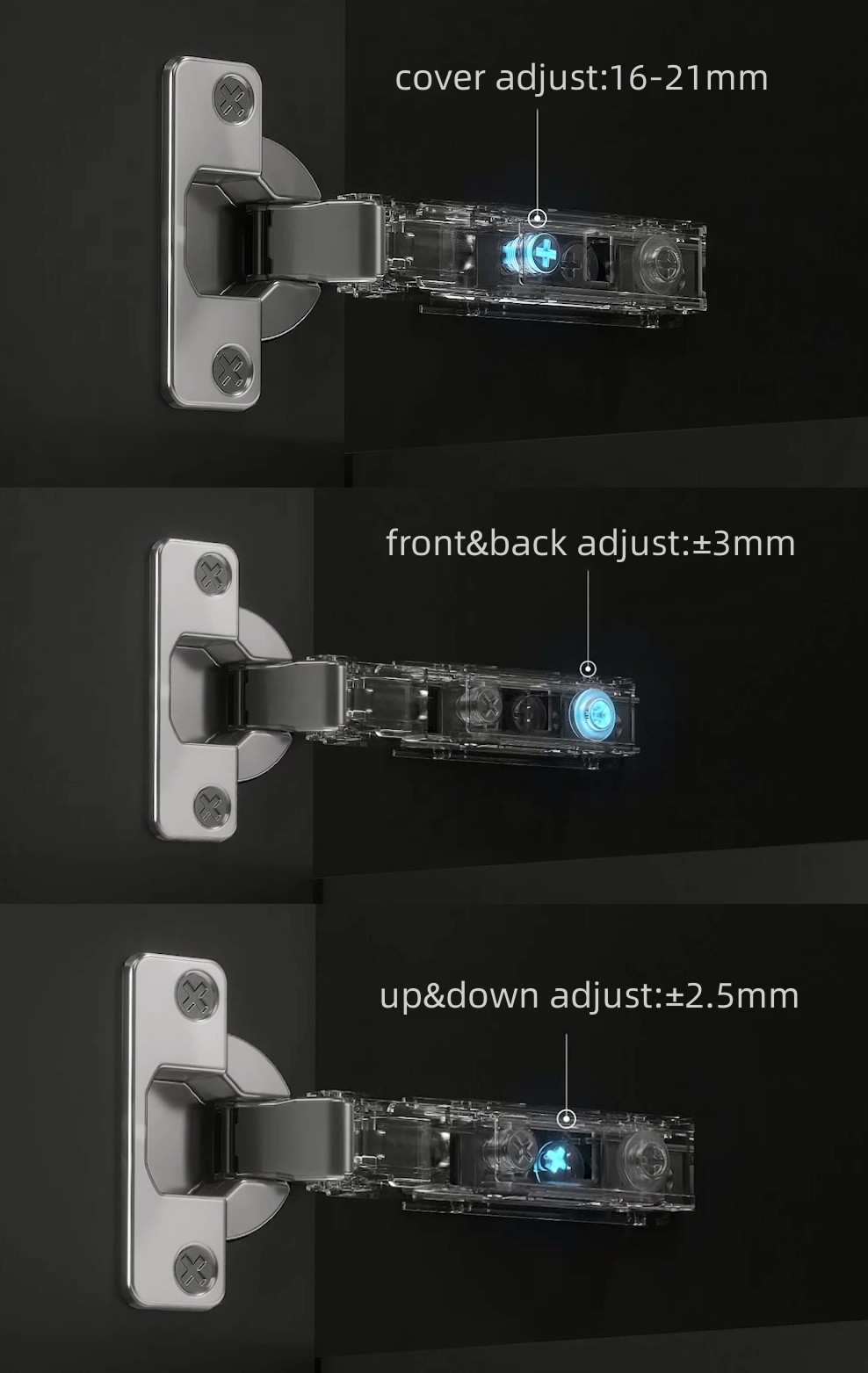

* 3D adjustment
Fixed double eccentric adjustment, the cabinet can meet six-sided adjustment, saving time and efficiency
Material:Cold rolled steel
Finish: nickel plated
Overlay:Full overlay/half overlay/insert
CC Distance: 45/48/52mm
Cup Diameter: 35mm
Cup Depth: 11.3mm
Plate Avaliable: 2-hole；4-hole square plate;3D square plate,butterfly plate
