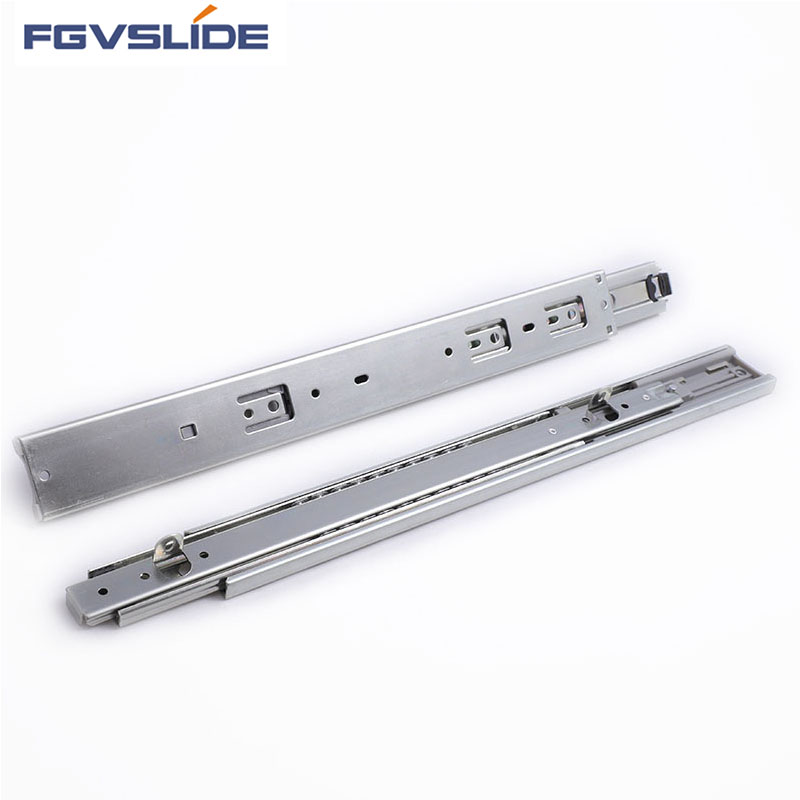

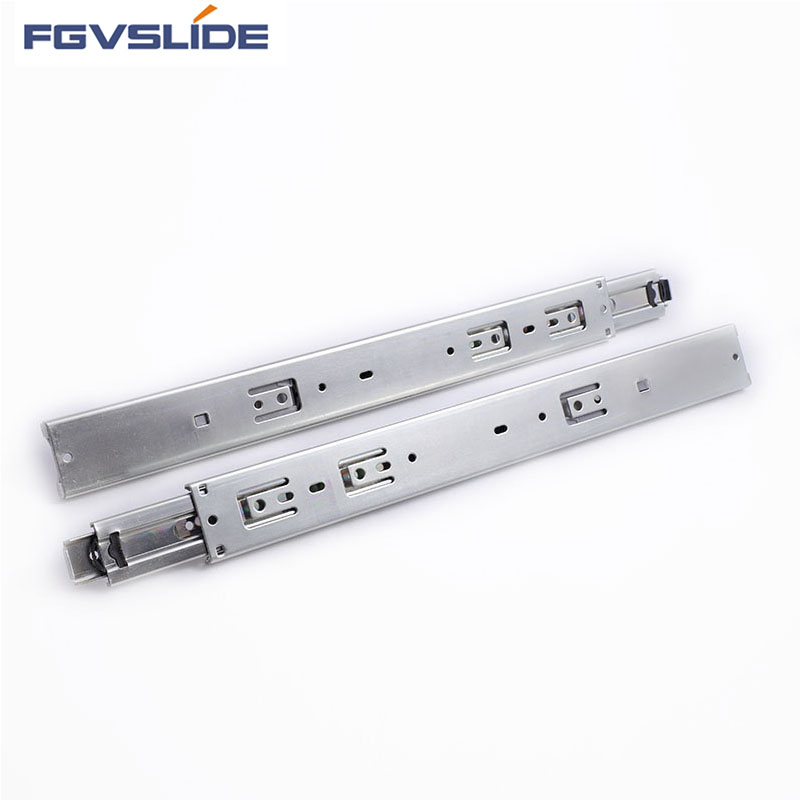

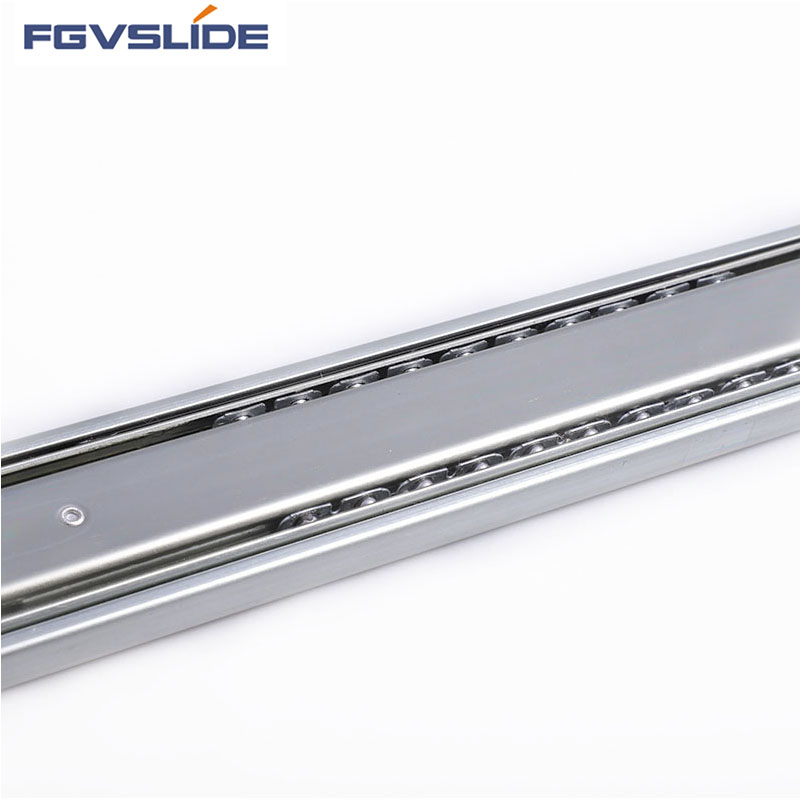

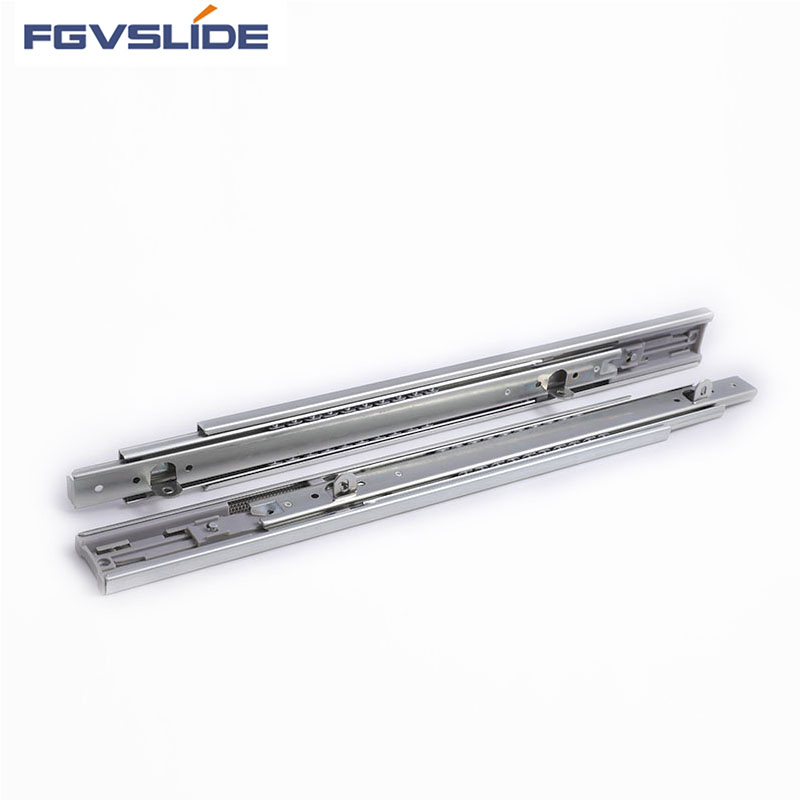

Soft Close Drawer Slide

  • Brand Name: FGVSLIDE
  • Model Number:DY4507SN-06-16
  • Mail Packing: N
  • Place of Origin: Guangdong, China.
  • Usage: Kitchen/Wardrobe/Drawer
  • Material: Cold rolled steel
  • Width: 45mm
  • Thickness: (O,M,I) 1.0*1.0*1.2mm/1.2*1.2*1.5mm
  • Length: 10"-24"standard sizes, each 2"means 50mm length
  • Installing Each Side Gap for Drawer: 13-13.25mm
  • Finish: Zinc plated/black
  • Load Capacity: 35kg
  • Mounting: Side mounting
  • Function: Soft Close
  • Test: SGS

PRODUCT Description

photobank (24).jpg

ITEM NAME

Double spring cabinets ball bearing slide cabinet kitchen slide handle furniture
ITEM NO.
DY4507SN-06
HOLE PATTERN
Standard
FINISH
Zinc Plated

LOAD RATING

35 KGs / 45 KGs

LENGTH

10 to 24 inches

BALLS

2 Balls / 3 Balls

EDGE

Oval / Square

INSTALLATION

side mount

MOQ

510 pairs

EXTENSION full extension TEST pass 48hrs salt spray test



photobank (25).jpgphotobank (26).jpgphotobank (35).jpgphotobank (36).jpgphotobank (37).jpg



Testing

SGS TEST

Passed over 50,000 open-close

Passed 48 hours salt spray test

Passed 75 pounds load test

Sample

Sample free and small order can be accepted

Features

Strengthened adjustable screw can widen the adjustable ranges and longer using life.

Strengthened spring, thickness 2.5mm instead of  common one thickness:

1.2*1.2*1.5mm or 1.0*1.0*1.2mm

Adopt advanced hydraulic system,longer life time,smaller volume



Production Name Double spring full extensions ball bearing soft close kitchen cabinet telescopic drawer slides
Model Number DY4507SN-06-16
Material Cold rolled steel
Thickness (O, M, I) 1.0*1.0*1.2mm/1.2*1.2*1.5mm
Length 250mm-600mm (10"-24")
Finish Black electrophoresis, chrome plated.
Loading Rate 25-35kg (18")
Height  12.7mm
Function Soft close,smooth,silent
