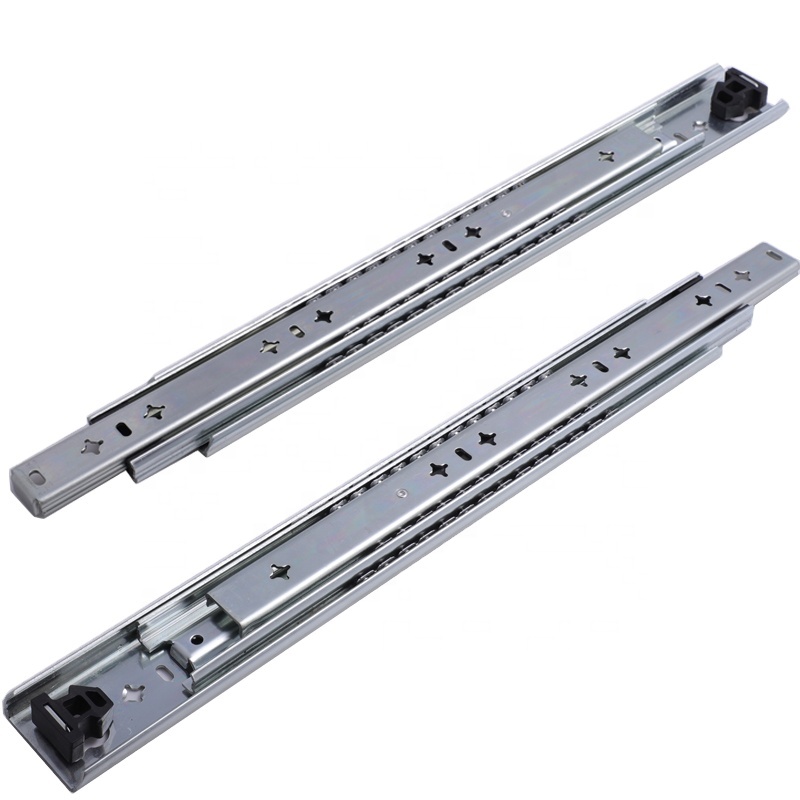

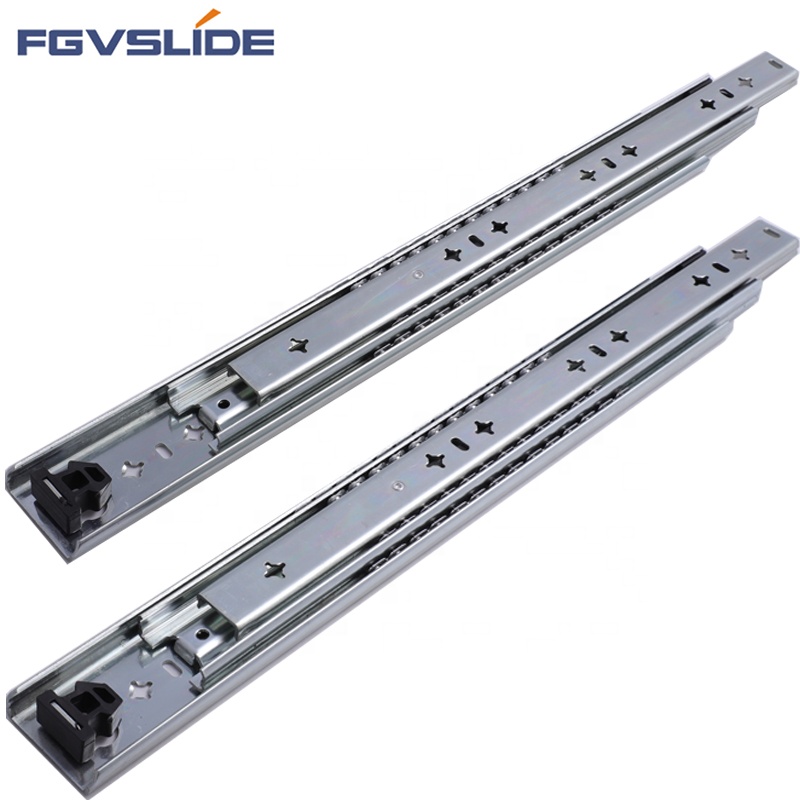

Heavy Duty Drawer Slide

PRODUCT Description

heavy duty ball bearing tool box drawer slides tool box drawer slides

ITEM NAME	76mm industrial heavy duty ball bearing tool box drawer slides	ITEM NO.	DY7601S
HOLE PATTERN	Standard	FINISH	Zinc Plated
LOAD RATING	200 KGs	LENGTH	10 to 74 inches
BALLS	2 Balls	EDGE	Oval / Square
INSTALLATION	side mount	MOQ	100 pairs
EXTENSION	full extension	TEST	pass 48hrs salt spray test

Testing	SGS TEST
	Passed over 50,000 open-close
	Passed 48 hours salt spray test
	Passed 100pounds load test
Sample	Sample free and small order can be accepted

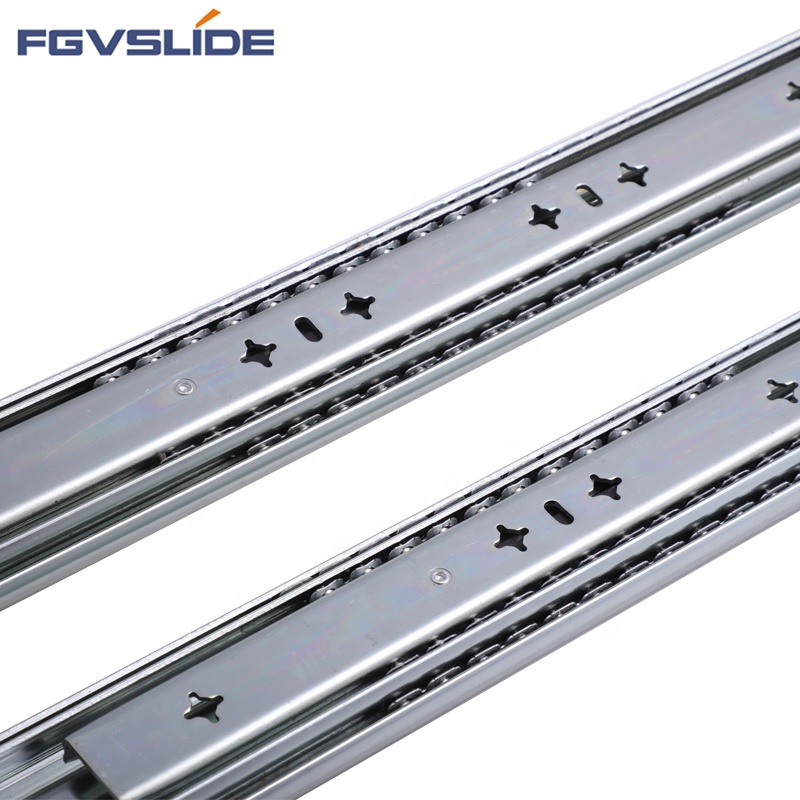

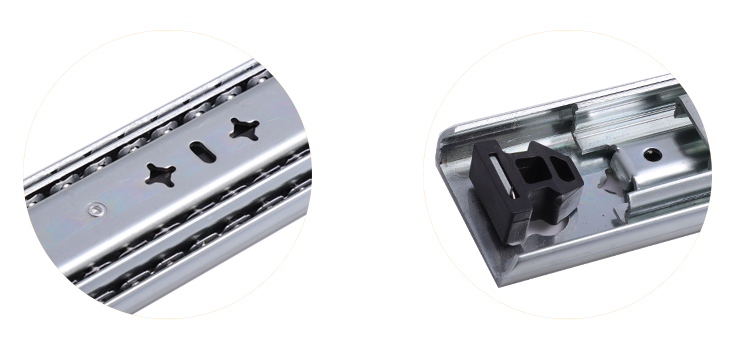

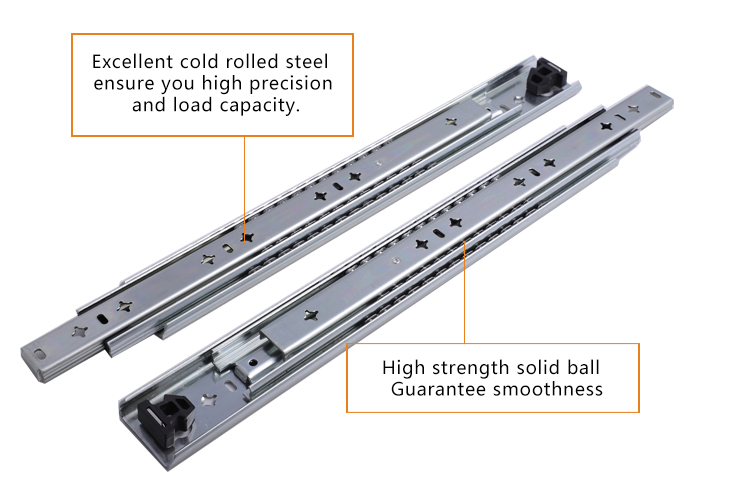

Features	Solid ball ensure smoothness and load capacity
	Thickness 2.52.52.5,Loading rate:200kgs
	Perfet material and structure made by Taiwan Top Equipment
	W struture enble the slides make no noise when open the drawer ,double soft closing;
	TOP-high end quality in China

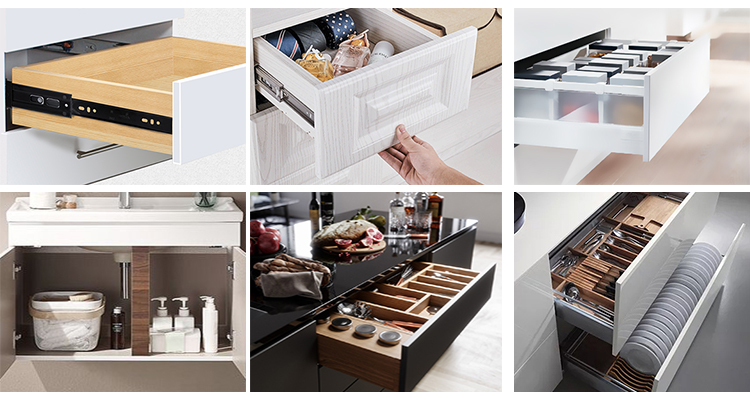

Product Use

Product packaging

Certifications

Company Profile

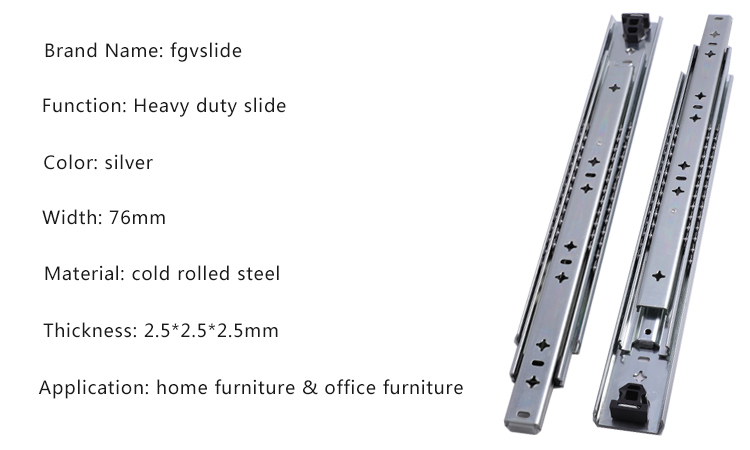

Production Name：	76mm heavy duty full extension ball bearing slide
Model Number:	DY7601S
Material:	cold rolled steel
Thickness:	(O,M,I) 2.52.52.5mm
Length:	300mm-1050mm（12"-42"）
Finish:	clear zinc plated.
Loading rate:	225kg（18"）
Height	19.8+0.2mm
Function	heavy duty,smooth,silent
