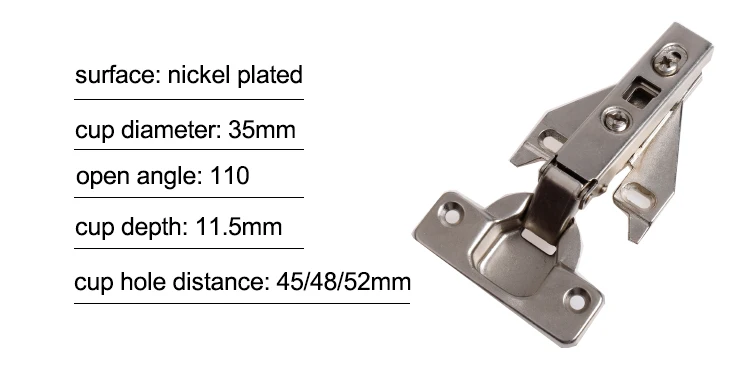

Furniture concealed clip on america door hinges

  • Brand Name: FGVSLIDE
  • Model number:DYAME01
  • Mail Packing: N
  • Place of Origin: Guangdong, China.
  • Usage: Kitchen/Cabinet
  • Type: Cabinet Hinge
  • Material: Cold rolled steel
  • Cup diameter:35mm
  • Opening Angle:110 degree
  • Finish: Nickle Plated
  • Material:Steel Cup Nickel Plated
  • Function: Self Close
  • Test: SGS

PRODUCT Description


1. Excellent cold rolled steel ensure you high precision and load capacity.

2. High strength solid ball guarantee smoothness.

3. 50000 times test.

Furniture concealed clip on america door hinges

ITEM NAME

Furniture concealed clip on america door hinges
ITEM NO.
DYAME01
MATERIAL
Cold Rolled Steel
FINISH
Nickel Plated

CUP DIAMETER

35mm

CUP HOLE DISTANCE

45 / 48 / 52 mm
FUNCTION
Self closing
HOLE PATTERN
2 holes

STYLE

Full overlay / Half overlay / Inset

OPEN ANGLE

110  Degree








Testing

SGS TEST

Passed over 50,000 open-close

Passed 48 hours salt spray test

Sample

Sample free and small order can be accepted

Features

Strengthened adjustable screw can widen the adjustable ranges and longer using life.

Widening manganese steel spring,can disperse force when the hinge closed.

Strengthened spring, thickness 2.5mm instead of  common one thickness: 1.2mm

Adopt advanced hydraulic system,longer life time,smaller volume




5 ABC看图.jpg

1. who are we?
We are based in Guangdong, China, start from 2005,95% for export ,sell to Mid East,Oceania,North America,South America,Southeast Asia,Eastern Europe, Africa, Eastern Asia,South Asia,Domestic Market,Western Europe,Northern Europe, Central America,Southern Europe.
2. how can we guarantee quality?
Pre-production sample before mass production;
Final Inspection before shipment;

3.what can you buy from us?
Drawer Slide,Tandem Box,Face frame Hinge

4. why should you buy from us not from other suppliers?
1.Own factory manufacturing lines for 14years of OEM&ODM.
2.W a sales team w 18years export experience.
3.Quality control system strict fit ISO.
4.Main market in US, Canada and South America and European background
5.Vendor ofHafele, Homedepot,Wurth and Mobile.

Production Name Furniture concealed clip on america door hinges
Model Number DYAME01
Material Steel Cup Nickel Plated
Thickness 1.0/1.2mm
Finish Nickle Plated
Function Self close,silent
Certificate ISO9001
Feature
