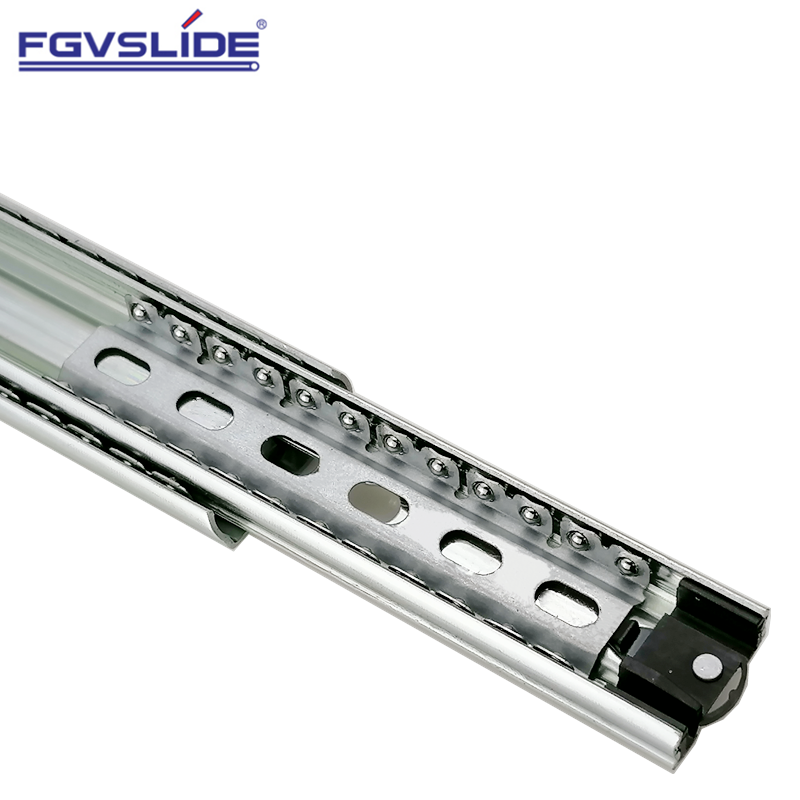

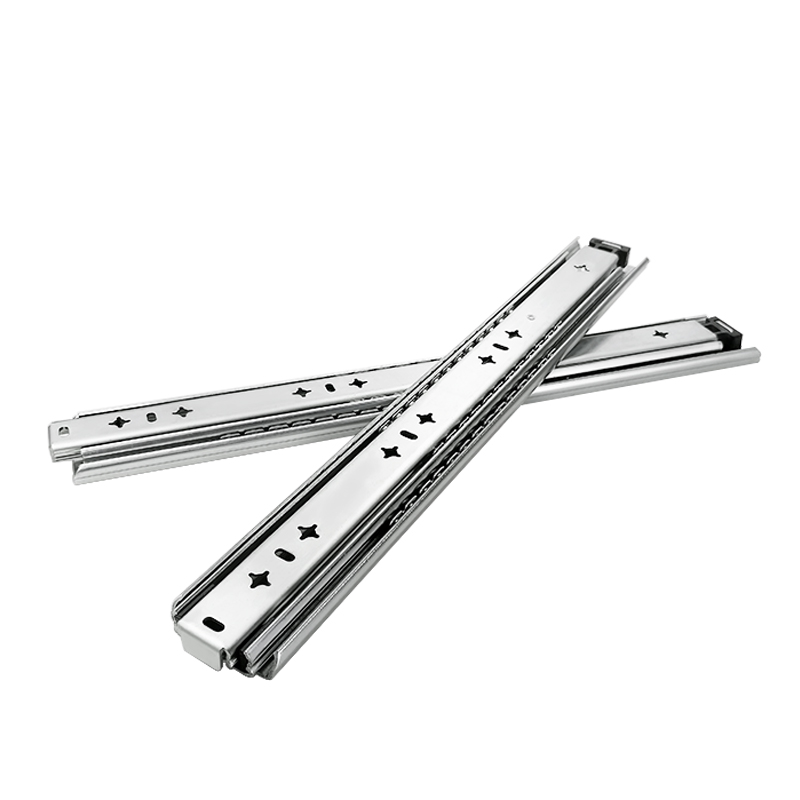

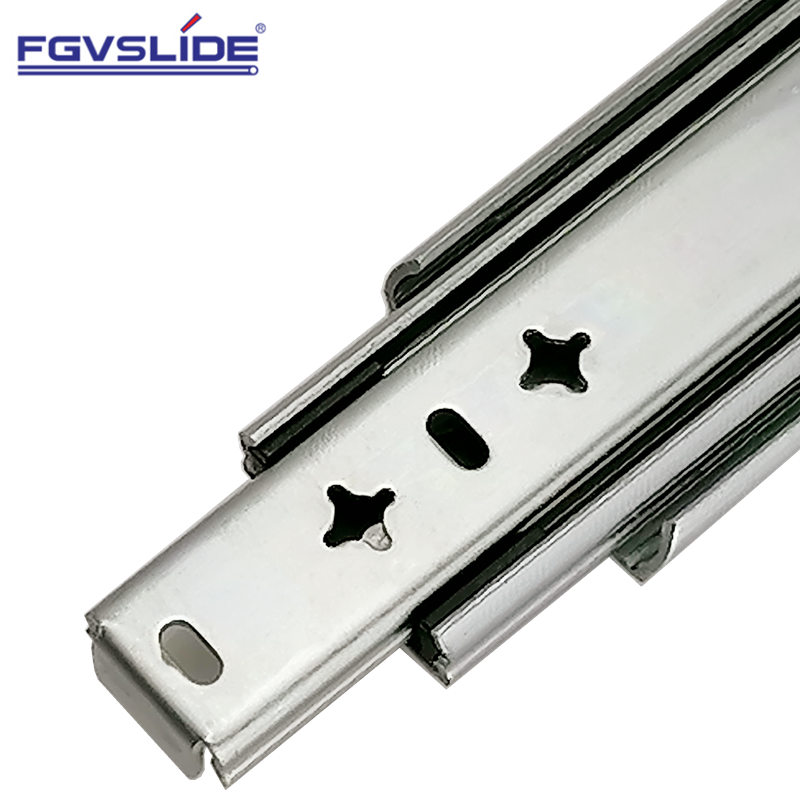

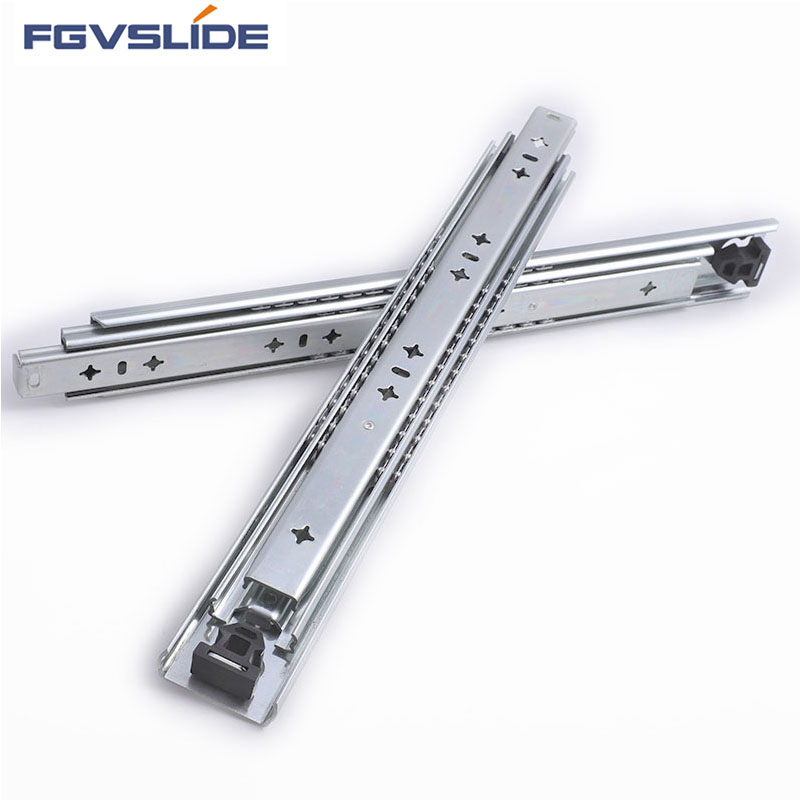

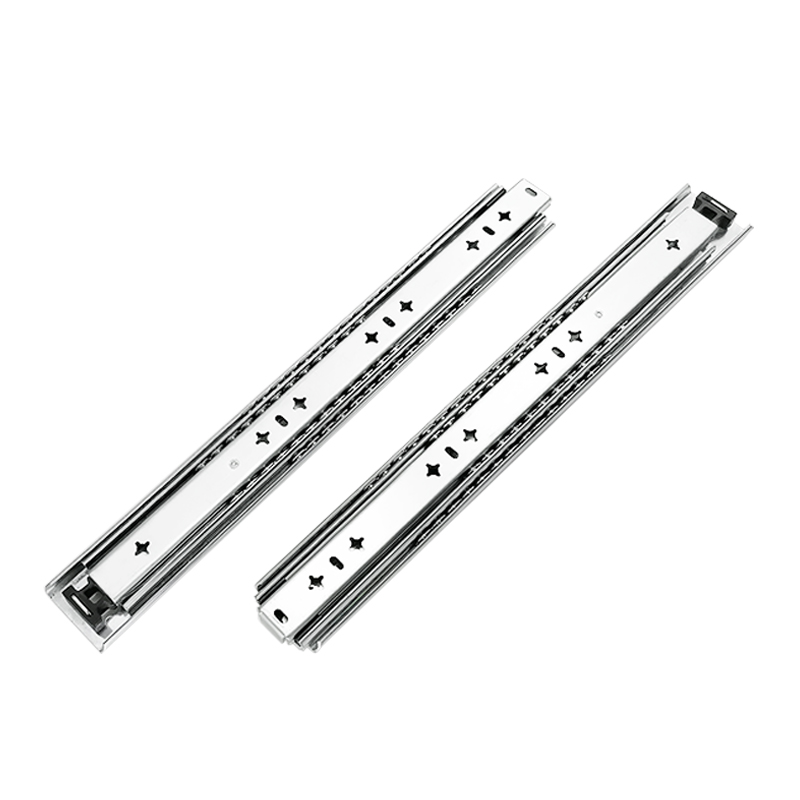

53Mm Full Extension Telescopic Channel Ball Bearing Drawer Slides

  • Place of Origin: Guangdong, China
  • Model Number: DY5301S
  • Material: cold rolled steel, Work hardened cold rolled steel
  • Width: 53mm
  • Thickness of material(O/M/I): 2.0*2.0*2.0mm
  • Specification: 12inch-42inch(300mm-1050mm)
  • Brand Name: FGVSLIDE
  • Style: Slide
  • Usage: commercial furniture
  • Finish: Electro-zinc plated with clear,yellow or black chromate
  • Certificate: ISO9001
  • Mount Method: Side Mounting
  • Load capacity: 100kg(100mm,18'')
  • Height: 19.8±0.2mm,16mm

PRODUCT Description


Video Description

04:27



China drawer slides soft close tool box 45mm full extension telescopic channel ball bearing drawer slides

China drawer slides self close tool box 53mm full extension telescopic channel ball bearing drawer slides

ITEM NAME

53mm steel tool box furniture hardware drawer slides
ITEM NO.
DY5301S
HOLE PATTERN
Standard
FINISH
Zinc Plated

LOAD RATING

100 KGs

LENGTH

10 to 74 inches

BALLS

2 Balls / 3 Balls

EDGE

Oval / Square

INSTALLATION

side mount

MOQ

1000 pairs

EXTENSION full extension TEST pass 48hrs salt spray test



China drawer slides self close tool box 53mm full extension telescopic channel ball bearing drawer slides

China drawer slides self close tool box 53mm full extension telescopic channel ball bearing drawer slides



Testing

SGS TEST

Passed over 50,000 open-close

Passed 48 hours salt spray test

Passed 100pounds load test

Sample

Sample free and small order can be accepted

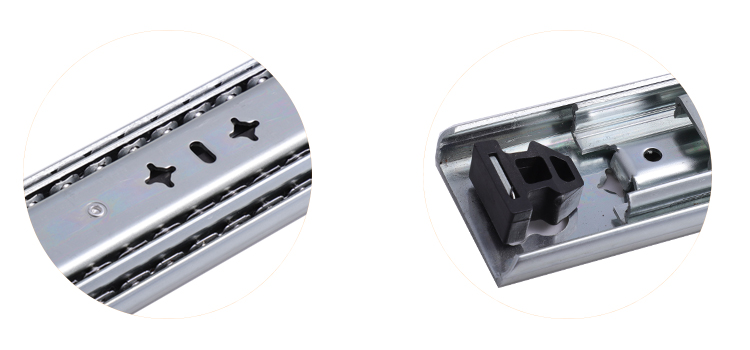

Features

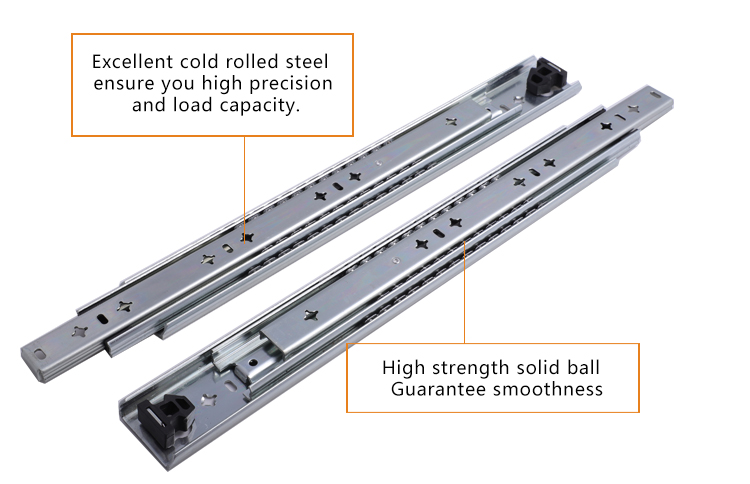

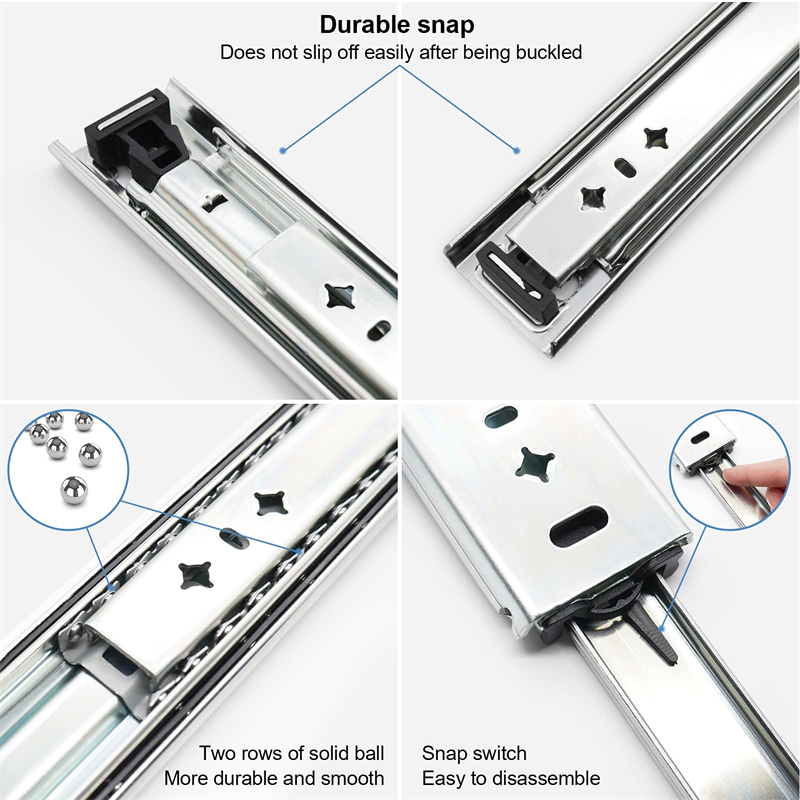

Solid ball ensure smoothness and load capacity

Strengthened spring,thickness 2.0*2.0*2.0/1.8*1.8*2.0

Perfet material and structure made by Taiwan Top Equipment

W struture enble the slides make no noise when open the drawer ,double soft closing;

 TOP-high end quality in China

China drawer slides self close tool box 53mm full extension telescopic channel ball bearing drawer slidesChina drawer slides self close tool box 53mm full extension telescopic channel ball bearing drawer slidesChina drawer slides self close tool box 53mm full extension telescopic channel ball bearing drawer slides

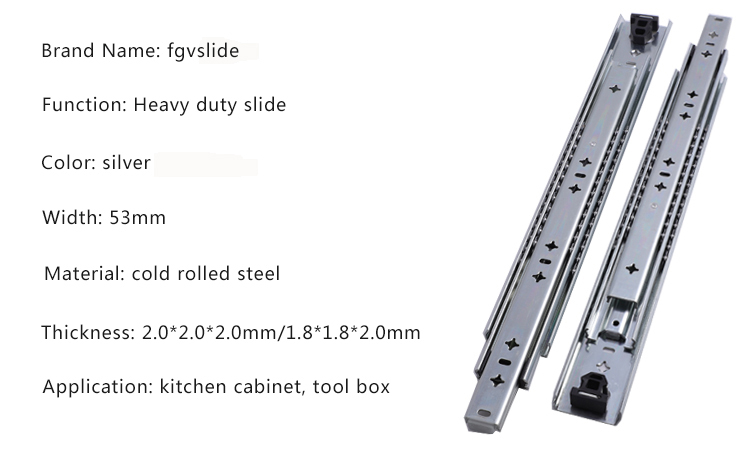

Production Name: 53mm heavy duty full extension ball bearing slide
Model Number: DY5301S
Material: cold rolled steel
Thickness: (O,M,I) 2.0*2.0*2.0mm/1.8*1.8*2.0
Length: 250mm-950mm(10"-38")
Finish: clear zinc plated.
Loading rate: 2.0*2.0*2.0mm,100-120kgs;1.8*1.8*2.0:80-120kgs
Height  19.8±0.2mm、16mm
Function heavy duty,smooth,silent
